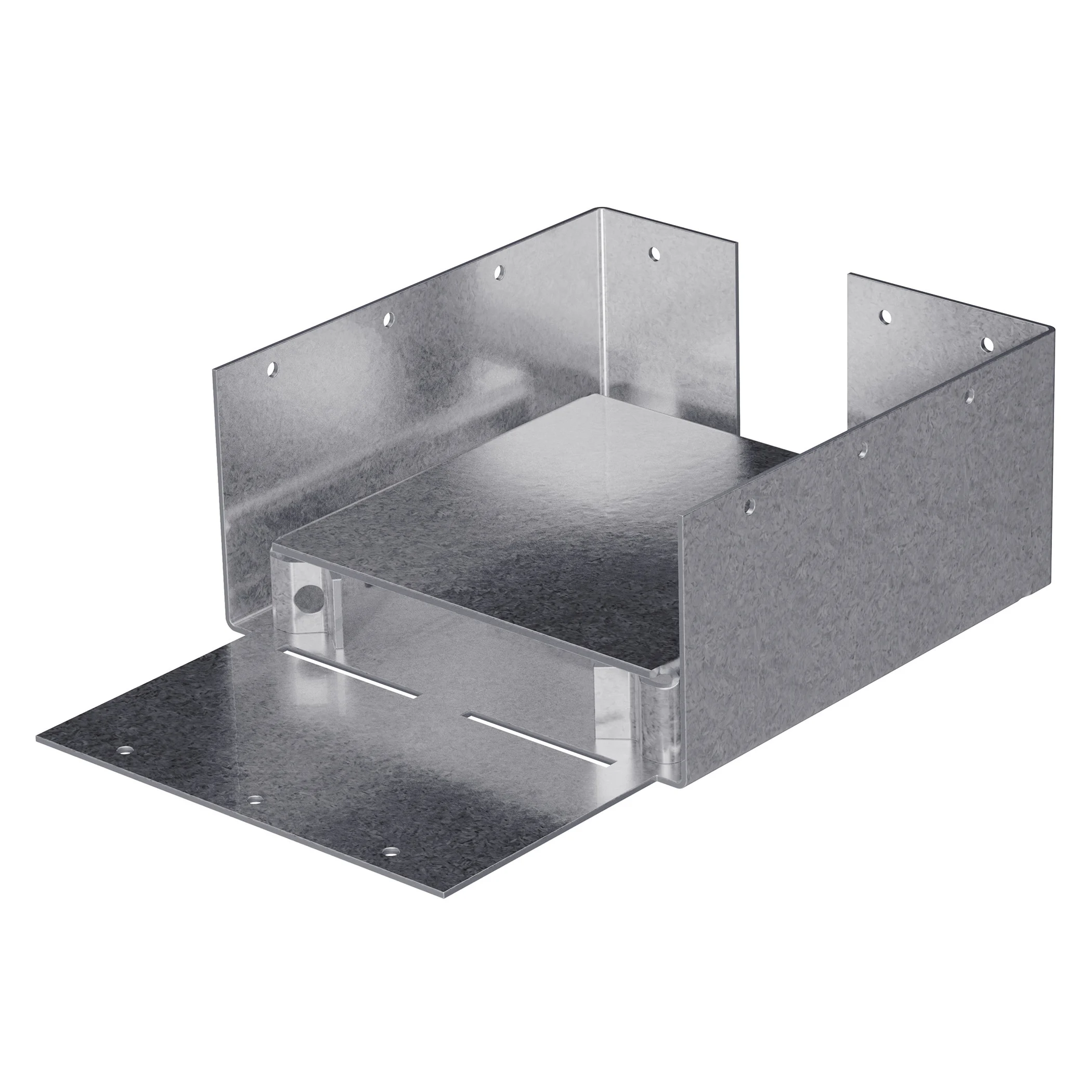

ABW Series ABW66RZ Post Base, 6 x 6 in Post, 12 ga, Steel, ZMAX – Simpson Strong-Tie

Description

The ABW is designed to attach wooden posts to existing concrete in medium-capacity applications. The built-in 1 in stand-off of this adjustable post-base helps to prevent rot at the end of the post. The ABW has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post-base makes a cost-effective option for securing a post to the foundation.

• The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
• The 1 in standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash
• Increased uplift loads for earthquake or wind loading
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Weight Capacity1190 lb Uplift, 12,935 lb Down DF/SPPost Size6 x 6MaterialSteelMaterial Gauge12FinishZMAXColorSilverLength6Width6Height2-13/16
