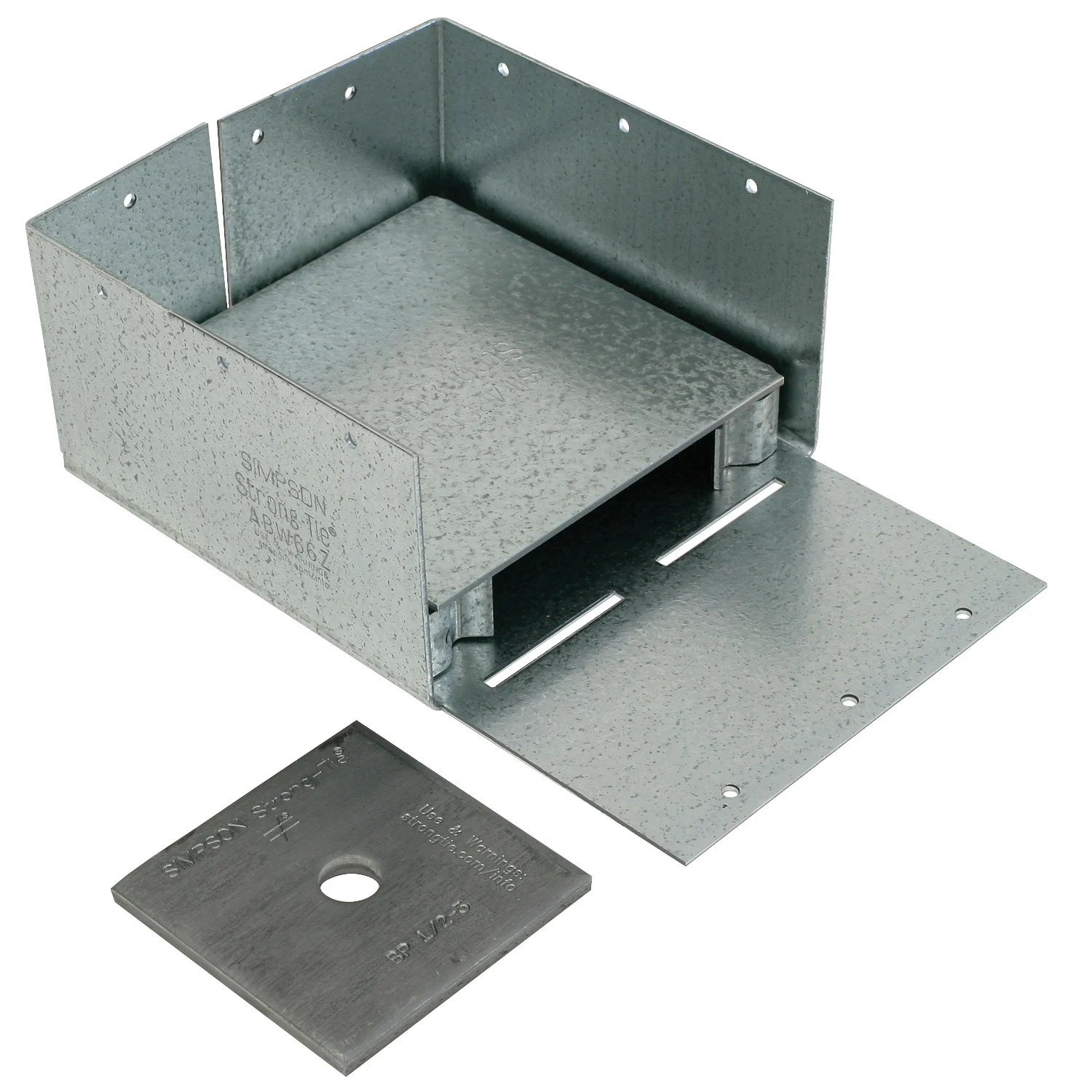

ABW Series ABW66Z Post Base, 6 x 6 in Post, 12 ga, Steel, ZMAX – Simpson Strong-Tie

Description

The AB Series of retrofit adjustable post-bases provide a 1 in stand-off for the post, are slotted for adjustability and can be installed with nails, Strong-Drive® SD connector screws or bolts (ABU). Depending on the application needs, these adjustable stand-off post-bases are designed for versatility, cost-effectiveness and maximum uplift performance.

• The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
• The 1 in standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash
• Increased uplift loads for earthquake or wind loading
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Weight Capacity1190 lb Uplift, 12,935 lb Down DF/SPPost Size6 x 6MaterialSteelMaterial Gauge12FinishZMAXColorSilverLength5-9/16Width5-1/2Height3
