Description
FEATURES
- 3200W motor for consistent power delivery
- 300mm maximum drilling diameter
- Pierces through reinforced concrete, red brick, and granite
- Copper motor for high reliability
- Automatic slip-clutch protects against overload and sudden bit seizing
- 550RPM single speed for relentless power
- Versatile machine for demolition, drilling, digging and punching tasks
- IP54 rating for dust protection and splash resistance
- Aluminium chassis for strength and longevity
- Steel-forged drill shaft for exceptional quality
- 1 ¼ inch UNC standard-sized spindle thread
- Corrosion-proof water inlet
- Inline circuit interrupt for overload protection
- Double insulation for motor protection and operator safety
SPECIFICATIONS

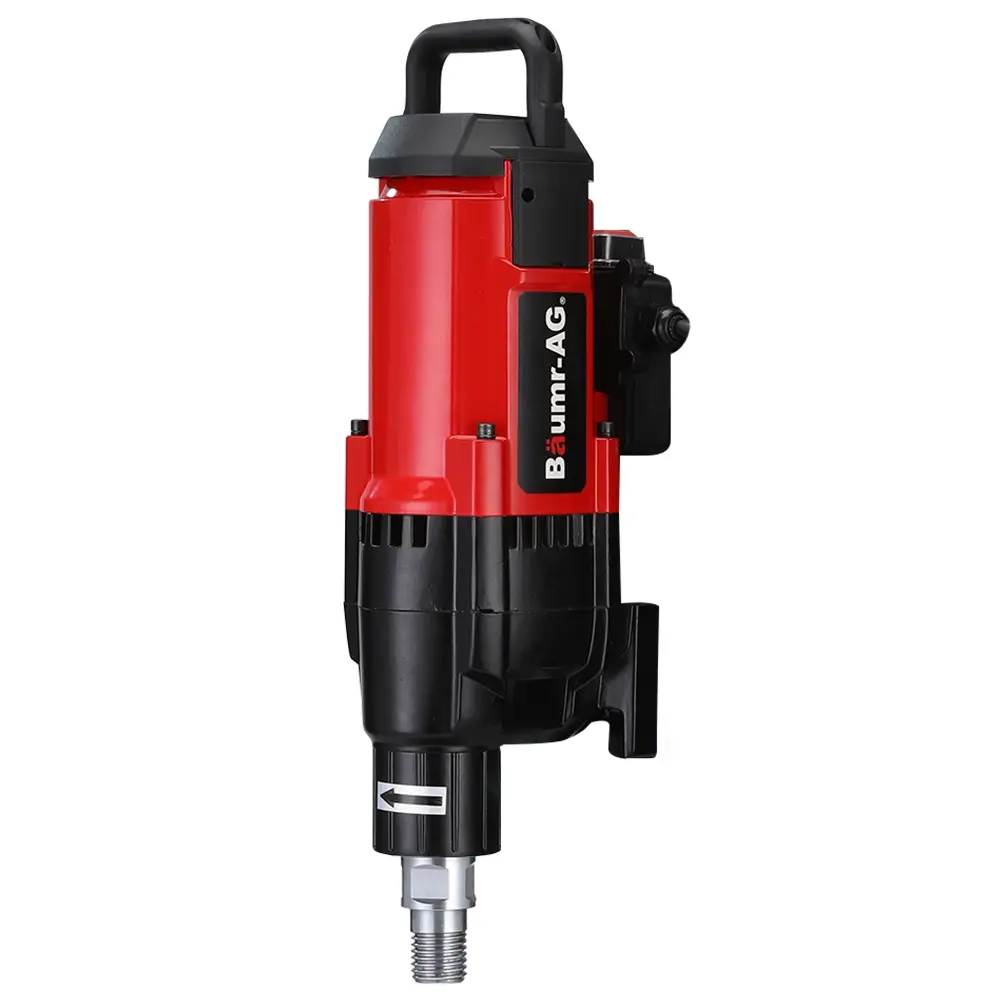

- Core Drill
- Model: HCD-280
- Input Voltage: 240V / 50Hz AC
- Rated Output Power: 3200W
- Cooling method: Air
- No load speed: 550r/min
- Speeds: 1 speed
- Drilling Diameter Range: 20-300mm (280mm without the included connector)
- Spindle Thread: 1-1/4″ UNC
- Coring Type: Wet/Dry Coring
- Construction Material:
- Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor With Carbon brushes
- Power Plug: 15amp
IN THE BOX
- 1 x Baumr-AG Core Drill
- Note: User Manual is accessible online
SIZE & WEIGHT
- Product Dimensions (W x L x H): 13 x 45 x 18cm
- Product Weight: 11kg
- Carton Dimensions (W x L x H):20 x 56 x 23cm
- Carton Weight: 14kg
