Description

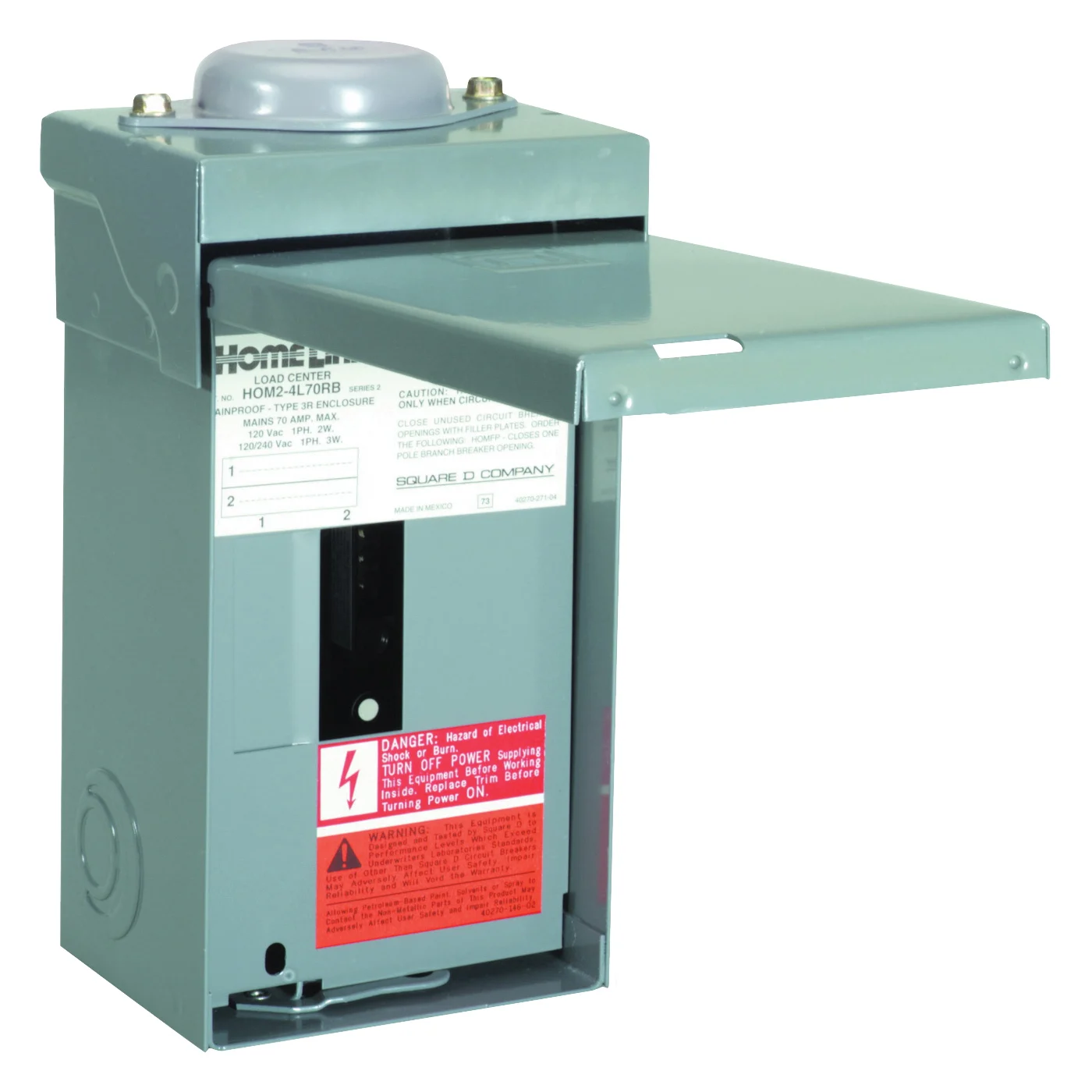

Main lug outdoor load center, 70 A, 2 space and 4 circuit. NEMA type-3R enclosure with a rainproof cover for outdoor use. Class 1170 unit is intended for use in fixed applications and can accommodate overhead or underground feed. Maximum SCCR of 10,000. ANSI certified and UL listed.
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Surface mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Voltage Rating120/240Current Rating70Number of Phases1Number of Spaces2Number of Poles2Number of Circuits4Breaker/Load Center TypeMain LugInterrupt Rating10Cable Size#12 to 3, #14 to 4Wiring Configuration3-WireBus Bar MaterialAluminumCover/Lid TypeSurfaceEnclosure TypeNEMA 3RMounting TypePlugFinishBaked EnamelColorGray
