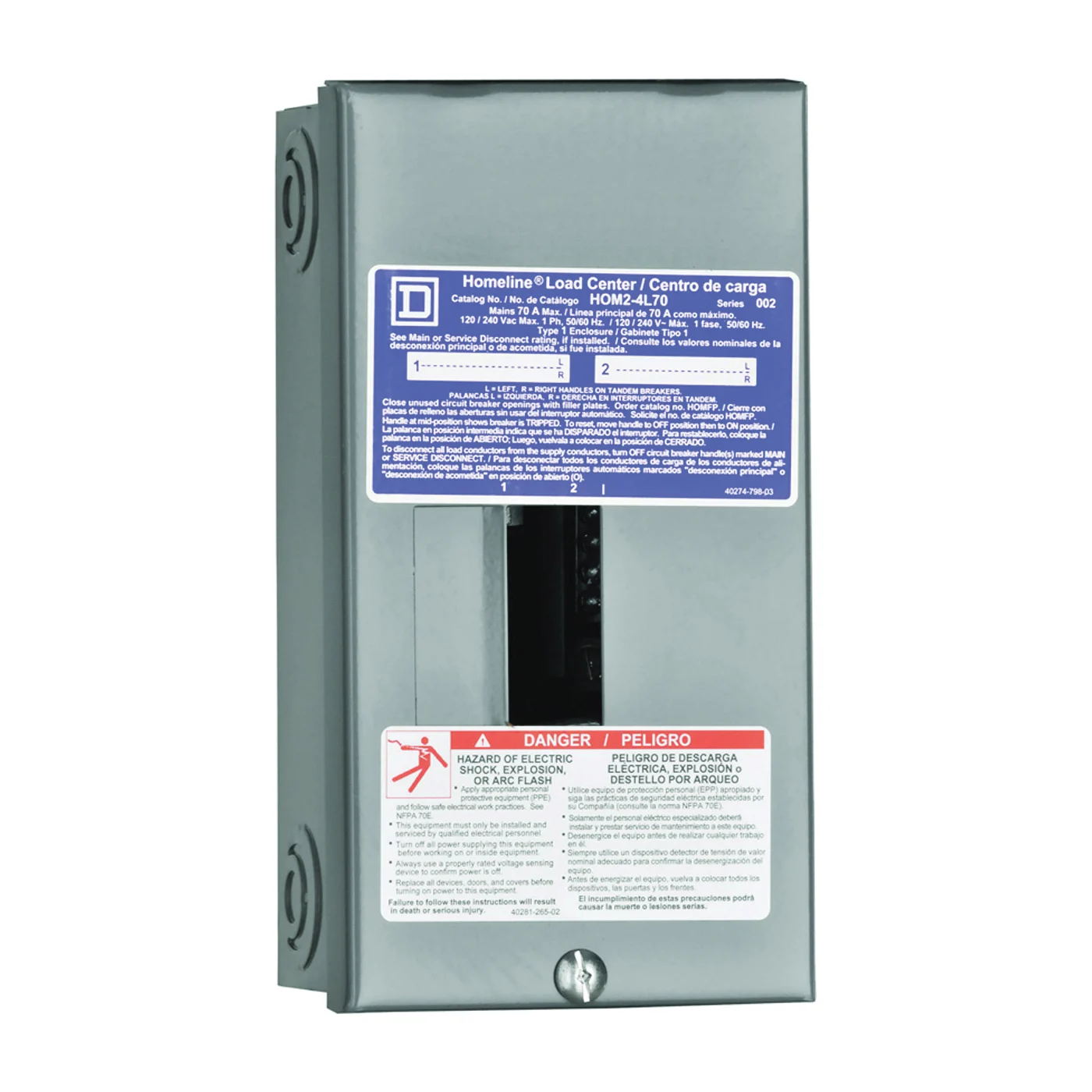

Homeline HOM24L70SCP Load Center, 70 A, 2-Space, 4-Circuit, Main Lug, NEMA 1 Enclosure, Gray, Plug

Description

Main lug indoor load center, 70 A, 2 space/4 circuits. Maximum SCCR of 10,000 and a maximum load of 240 V. NEMA type 1 enclosure. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.

• Accommodates plug-on secondary surge arrestor
• Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
• Surface mount device cover without a door
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque

Voltage Rating120/240Current Rating70Number of Phases1Number of Spaces2Number of Poles2Number of Circuits4Breaker/Load Center TypeMain LugInterrupt Rating10Cable Size#12 to 3, #14 to 4Wiring Configuration3-WireBus Bar MaterialAluminumCover/Lid TypeSurfaceEnclosure TypeNEMA 1Mounting TypePlugFinishBaked EnamelColorGray
