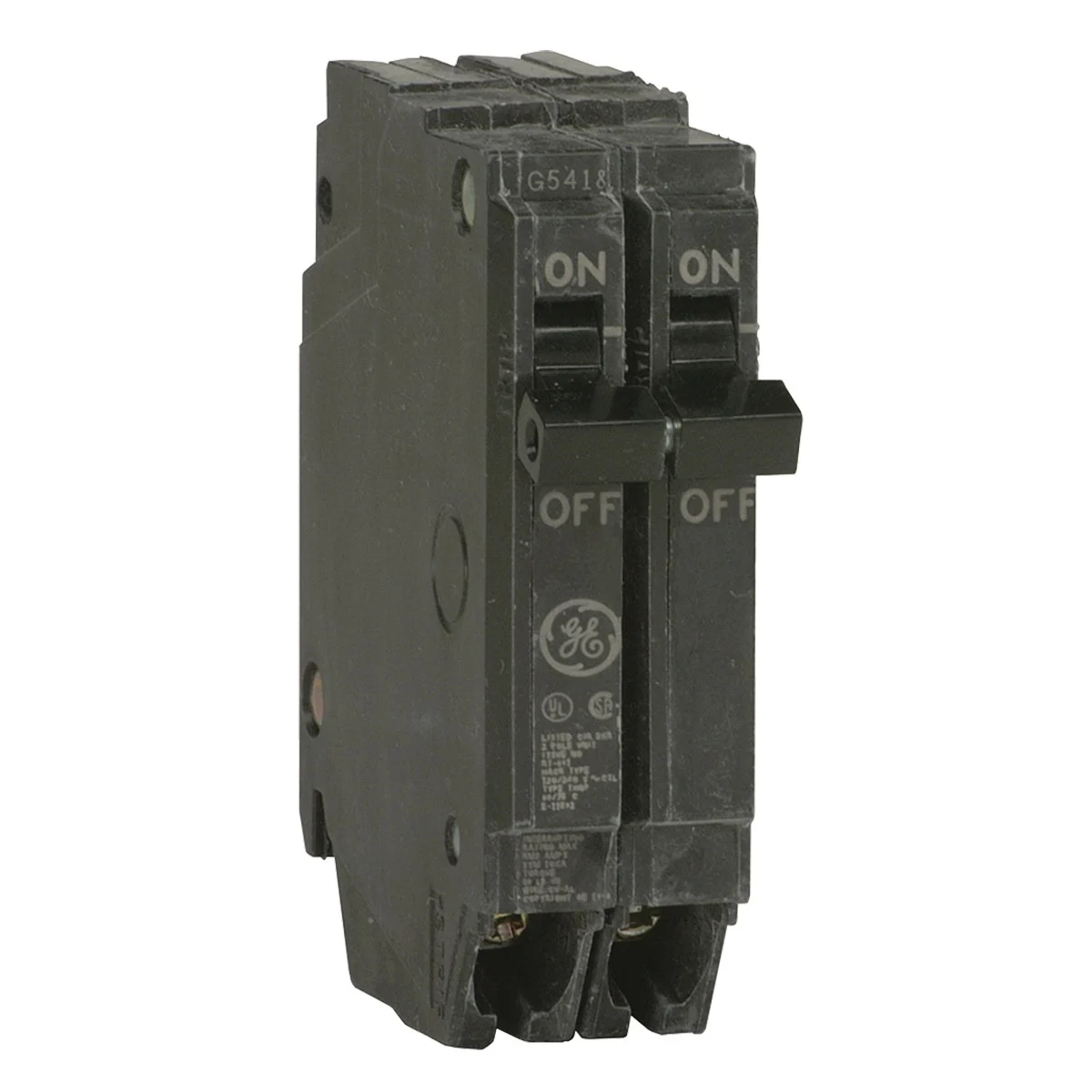

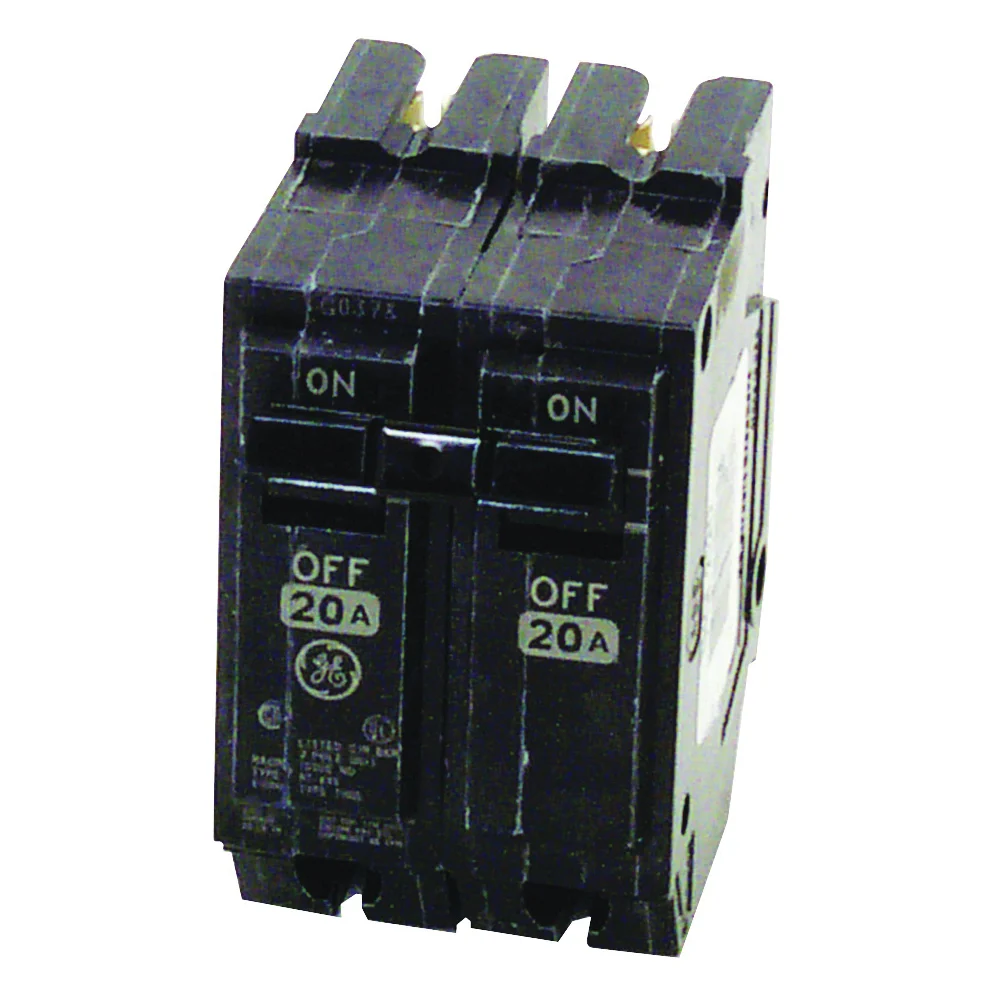

Industrial Solutions THQL2120A Feeder Circuit Breaker, Type THQL, 20 Amp, 2 -Pole, 120/240 V, Plug Mounting

Description

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 Amp 14-8 Cu or 12-8 Al AWG wire, 35 to 60 Amp 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).

• Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
• Calibration screw is cemented to prevent shifting
• Case is made of heat-resistant thermoset for stability and structural integrity
• Trips to the center position

TypeType THQLVoltage Rating120/240Current Rating20Operating Frequency50/60Number of Phases1Number of Poles2Interrupt Rating10Frame TypeQ-LineTrip TypeNon-InterchangeableWire Size14 to 8, 12 to 8Terminal TypeScrew ClampMounting TypePlugDimensions3.28 in L x 2 in W x 2.38 in HOperating Temperature60 to 75Suitable forReverse Feed
