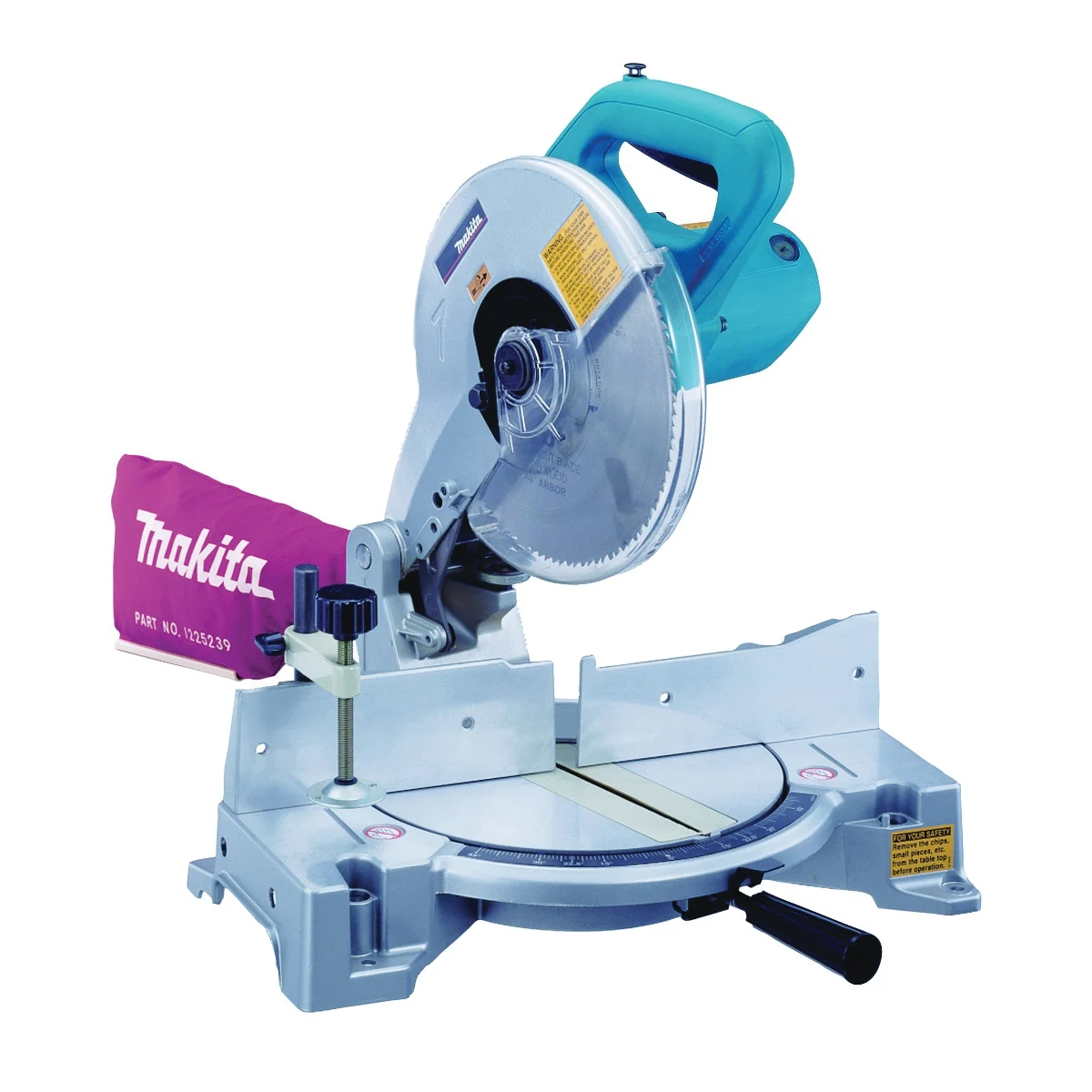

The LS1040 has a dynamically balanced 15 A direct drive motor with 4600 rpm for improved performance. The direct drive motor with soft start delivers smoother start-ups and constant power, with no belts to slip or replace. The LS1040 has a dual post compound pivot arm, with bevel cuts up to 45 deg to the left. Miter adjustments range from 0 to 45 deg (left) and 0 to 52 deg (right), with nine positive miter stops at 15, 22.5, 30 and 45 deg (left or right) and 0 deg (90 deg cuts). The precision-machined aluminum base ensures accurate cuts. Ease-of-use and comfort features include a fluorescent light that works independently of the blade rotation to clearly illuminate the work surface and a compact size weighs only 27.3 lb for easy portability.
- Dual post compound pivoting arm
- Positive miter stops at 9 settings like 15 deg, 22.5 deg, 30 deg, 45 deg, right or left and 0 deg (90 deg cuts)
- Bevel cuts 0 to 45 deg for the most common cutting applications
- Precision machined aluminum base ensures accurate cuts
- Performs compound cutting operations
- Shaft lock for easy blade changes
Maximum Miter Angle45, 52Maximum Bevel Angle45Number of Speeds1Speed Rating4600Cutting Capacity1-3/8 x 3-5/8 in deg at 45, 2-3/4 x 5-1/8 in at 90 degBlade Diameter10Cord Length6ColorSilver/TealDimensions20.88 in L x 18.75 in W x 21 in HIncludes(1) A-93669 10 in 40T Micro-Polished Miter Saw Blade, (1) 122852-0 Dust Bag, (1) 782232-8 Socket Wrench, (1) 762001-3 Triangular Rule, (1) 122536-0 Vertical Vise
