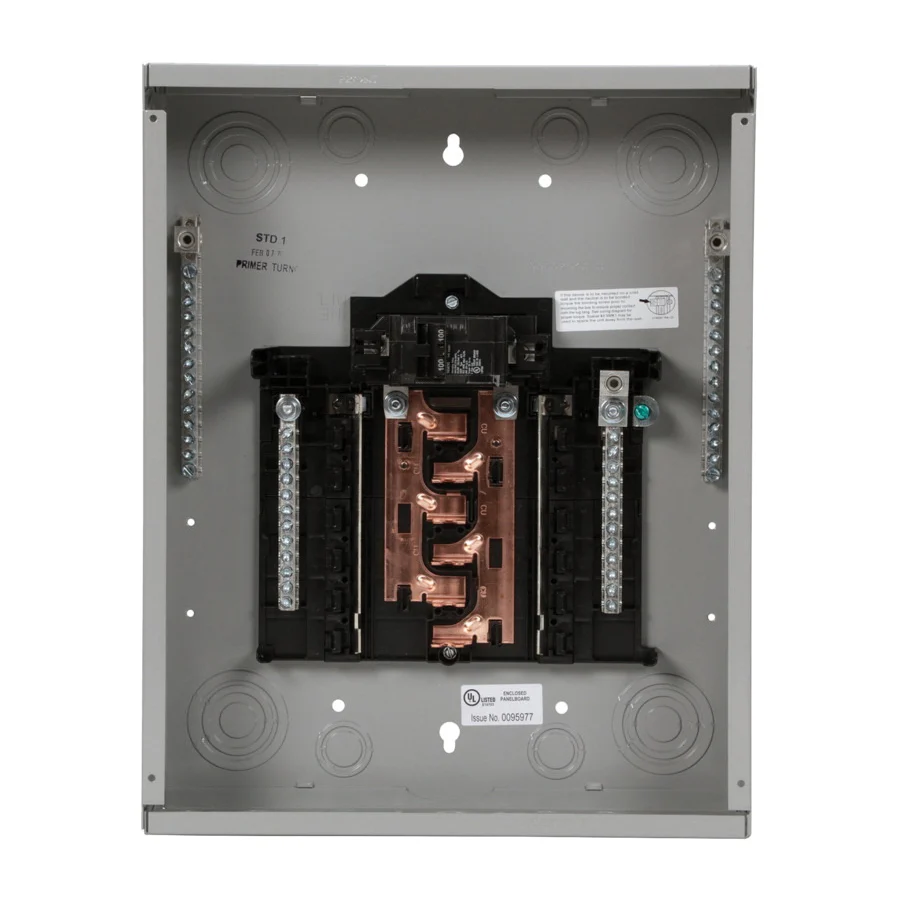

PN PN2040B1200C Assembled Load Center, 200 A, 20 -Space, 40 -Circuit, Main Breaker, Plug-On Neutral, Gray

Description

PN Series load centers – a new high-quality and feature rich line of load center products meets applications for virtually every need. The PN Series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim – the features that we specifically engineered to decrease installation time and increase flexibility.

• LED indicators for troubleshooting
• Insta-wire connectors
• Plug-on neutral load centers will accept existing pigtail breakers
• Compatible with a QSA breaker for a simple way to add surge

Voltage Rating120/240Current Rating200Number of Phases1Number of Spaces20Number of Poles20Number of Circuits40Breaker/Load Center TypeMain Breaker, Plug-On NeutralInterrupt Rating22Wiring Configuration3-WireBus Bar MaterialCopperEnclosure TypeNEMA 1Temperature Rating60 to 75Mounting TypeFlush, SurfaceColorGrayIncludes(2) Factory Installed Ground Bars
