Description

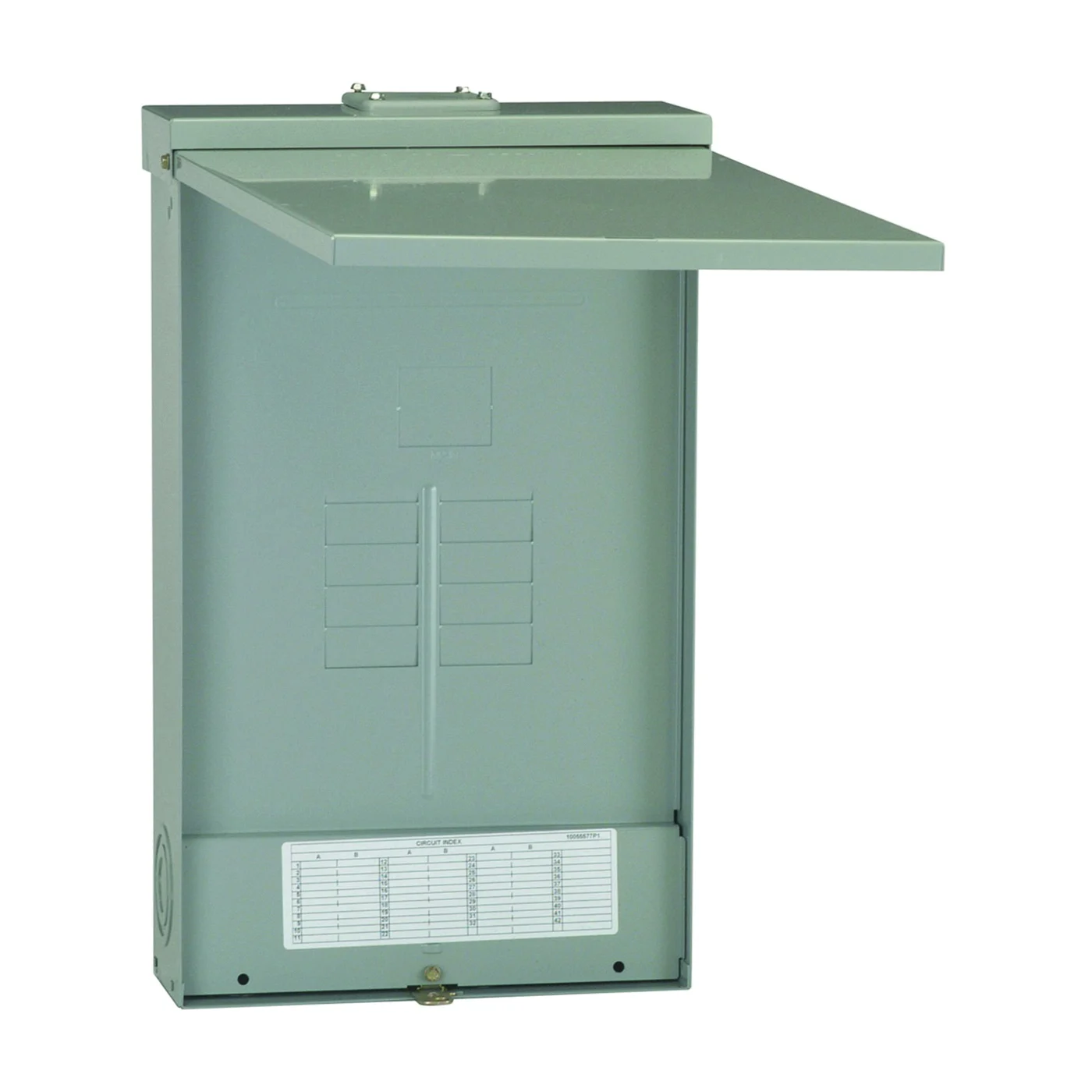

PowerMark Gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.
- Rust-resistant galvanized box for outdoor use
- Highly conductive copper buss bar
- Factory-installed main lug, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- 100% rated split neutral on each side
- Single-phase, 3-wire, 120/240-Volt and 22K AIC rating
- All neutral holes rated for 14 – 4 wire
- Accepts GE, GFCI and AFCI breakers
- UL listed and ANSI certified
- Convertible to main breaker
- Closure caps included, hubs ordered separately
Voltage Rating120/240Current Rating125Number of Phases1Number of Spaces8Number of Poles8Number of Circuits12Breaker/Load Center TypeMain LugCable Size6 to 1Wiring Configuration3-WireBus Bar MaterialCopperEnclosure TypeNEMA 3RMounting TypePlugFinishGalvanized
