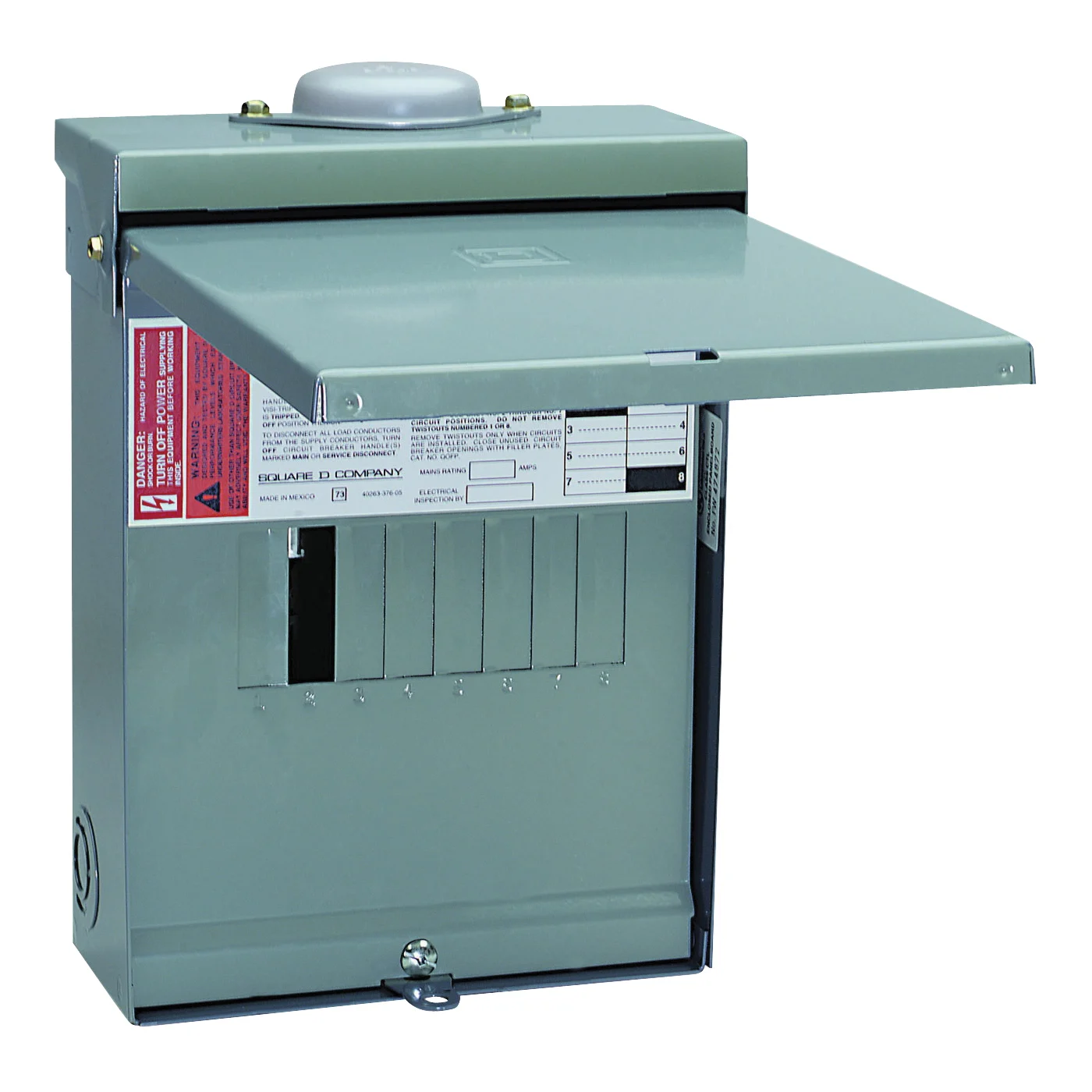

QO QO612L100RBCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Plug Mounting

Description

Outdoor main lug load center, 100 A, 6 space 12 circuit. NEMA type 3R enclosure with a rainproof cover. Copper bus bar, accommodates standard QO or QO tandem circuit breakers. ANSI certified and UL listed.

• Indoor and outdoor versions
• Separate flush or surface mount covers
• Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
• Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
• Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
• QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
• Single, captive interior mounting screw can’t be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection

Voltage Rating120/240Current Rating100Number of Phases1Number of Spaces6Number of Poles6Number of Circuits12Breaker/Load Center TypeMain LugInterrupt Rating10Cable Size#8 to 1Wiring Configuration3-WireBus Bar MaterialAluminumCover/Lid TypeSurfaceEnclosure TypeNEMA 3RMounting TypePlugFinishBaked EnamelColorGray
