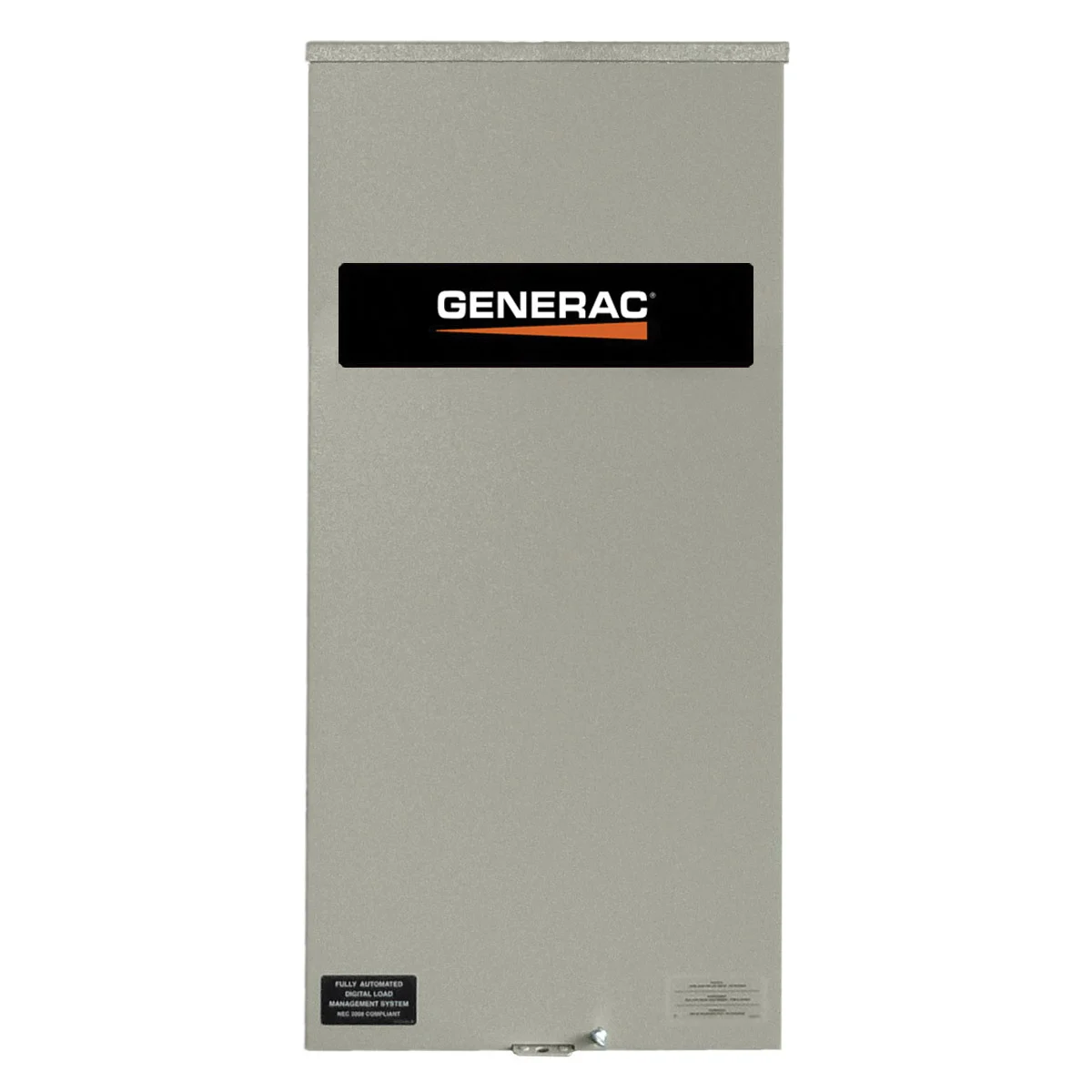

RXSW200A3 Series Automatic Transfer Switch, 250 MCM to 6 AWG Wire, 1-Phase, 200 A, 120/240 V, NEMA 3R Enclosure

Description

Featuring a NEMA 3R aluminum enclosure and heavy-duty Generac contactor, this service entrance switch is designed for use with single phase generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.

• Manage up to four HVAC loads with no additional hardware needed, providing a more efficient system and allowing you to reduce the size of the generator needed to protect your home
• Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice and debris
• Can be used with up to 8 additional loads

Voltage Rating120/240Current Rating200Frequency Rating60Wattage Rating48,000Number of Poles2Number of Phases1Wire Size250 MCM to 6 AWGEnclosure TypeNEMA 3RMounting TypeWallColorGrayDimensions30 in H x 13.5 in W x 6.3 in D
