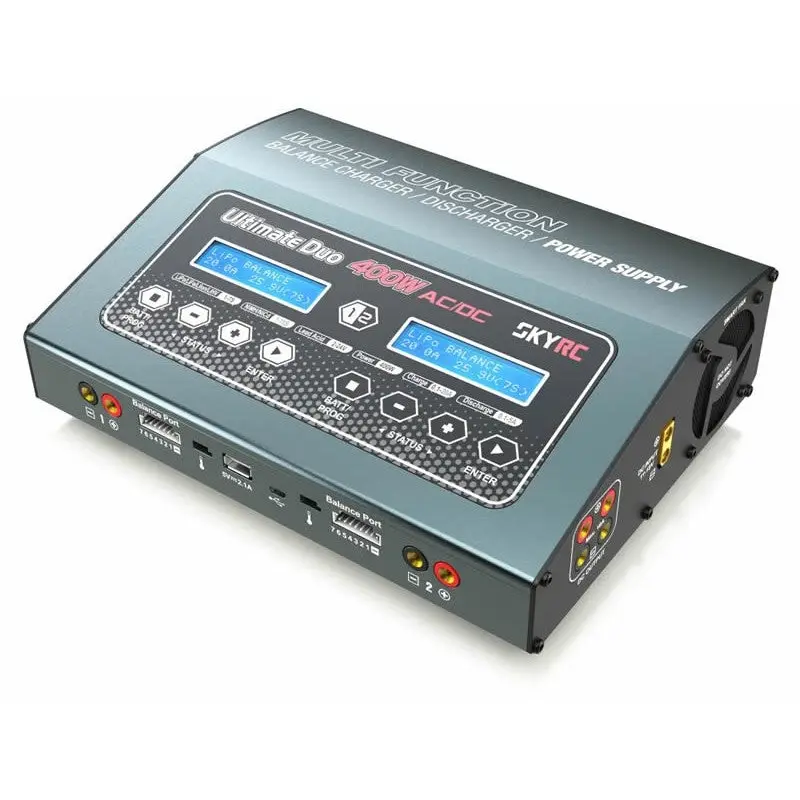

SkyRC D400 400Watt 20Amp Output AC/DC Charger – Electronics

Description

The SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC/DC mode to get the maximum charging power to shorten charging time. The D400 can also supply 150W on DC which users can use it to power DC devices. A synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits. The SKYRC D400 is compatible with our PC application to allow for easier monitoring and use. Charge Master: The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from the “Charge Master” PC Software. Input Voltage: AC 100-240V DC 11-18V Charge Circuit Power: 400W (2 x 200W) Discharge Circuit Power: 36W Charger Current Range: 0.1-20A Discharge Circuit Range: 0.1-5A Current Drain for Balancing Port: Max 500mA/cell Trickle Charging Current: 50mA-300mA & OFF DC Power Supply Output: 6-15V / Max. 10A LiPo/LiFe/LiIon/LiHV Battery Cell Count: 1-7S NiMH/NiCd Battery Cell Count: 1-18S Dimensions: 258 x 194 x 83 mm Net Weight: 2510g What’s In The Box D400 Charger Balance Board (x2) XT60 to 4mm Cold Charge Lead (x2) Bare End to 4mm Gold Charge Lead (x2) UK Power Lead (AC) Instruction Manual
