Description

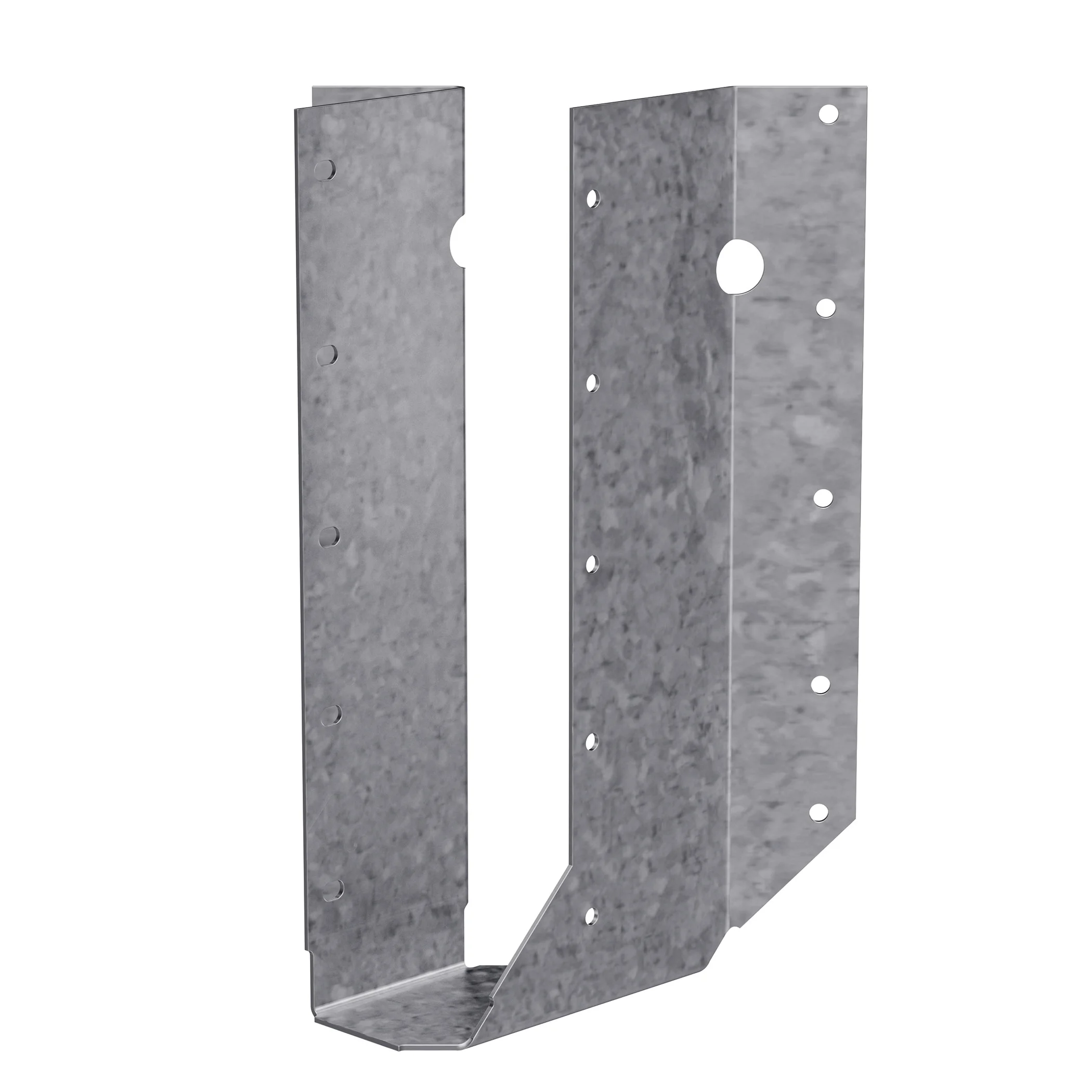

The SUR/L are 45 deg skewed hangers designed to support solid sawn and engineered-wood products used in wood construction. These U-shaped hangers encapsulate the top-flange of the joist, so no web stiffeners are required for standard installation.
- Skewed left
- Can accommodate joists skewed 40 to 50 deg
- Angled nail slots direct nails for proper installation
- Made from 16 ga steel
- ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40 to 50 deg skewed joist
Skew Angle45Fastener TypeNailMaterialSteelFinishZMAXMounting TypeFaceHeight8-1/8Width1-9/16Depth2TypeHanger
