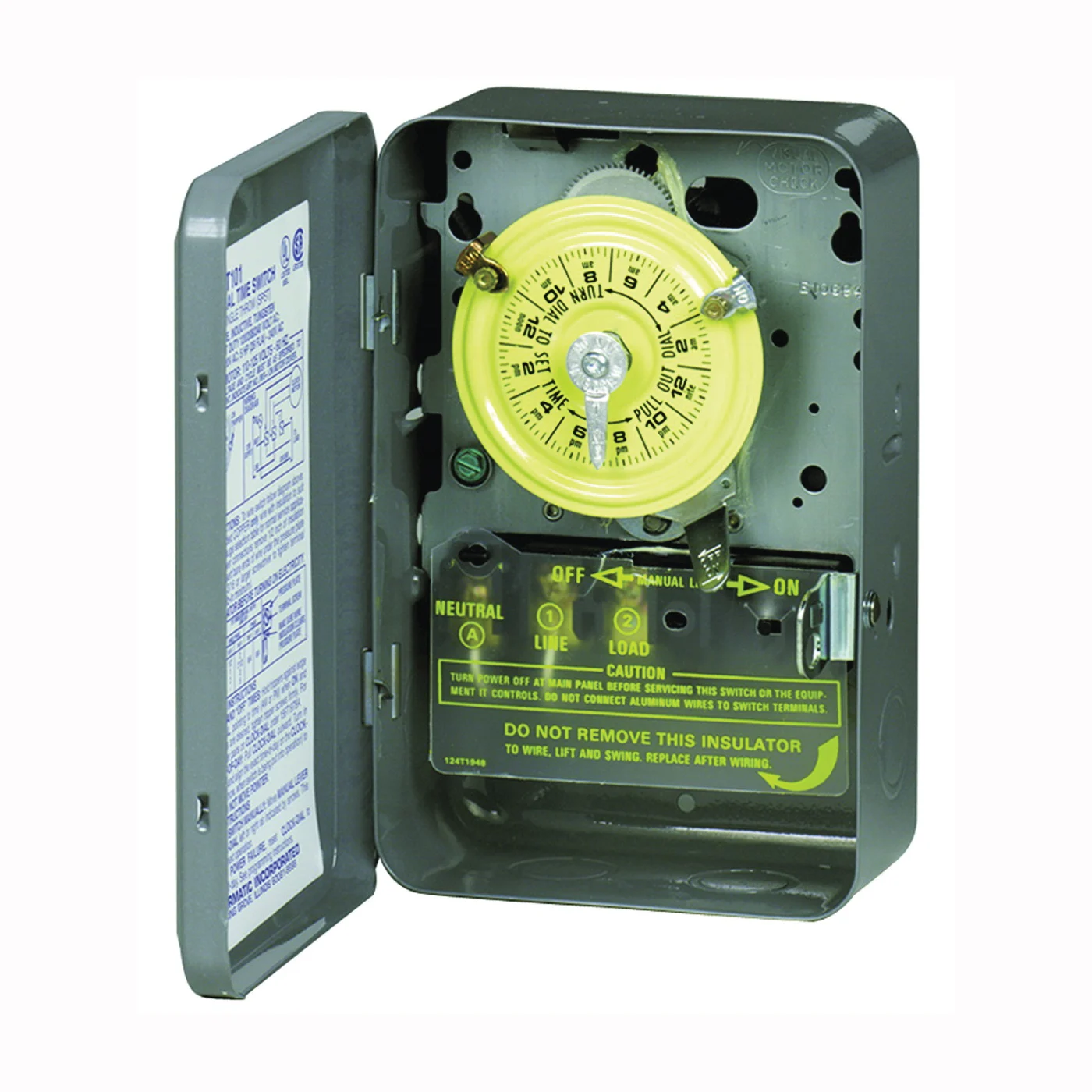

T104 Mechanical Timer Switch, 40 A, 208/277 V, 3 W, 24 hr Time Setting, Gray, 12 On/Off Cycles Per Day Cycle – Intermatic

Description

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 a per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.

• Direct 24 hrs control of most loads
• Up to 12 On/Off operations each day with minimum On/Off times of 1 hr
• Manual override
• One on and one off tripper included
• 40 A, 120 to 240 VAC, 60 Hz resistive, 40 A, 120 to 240 VAC, 60 Hz inductive, 16 A, 277 VAC, 60 Hz electronic ballast, 40 A, 120 to 240 VAC, 60 Hz tungsten

TypeHeavy-DutyVoltage Rating208/277Current Rating40Wattage Rating3Frequency Rating60HP Rating5Number of Poles2Cycle Time12 On/Off Cycles Per DayTime Setting24Installation TypeWallTemperature Rating-40 to 130ColorGrayWidth5-1/8Height7-7/8Depth3-7/16Suitable forBlowers Pumps, Conveyors, Electric Fences, Fans, Filters, Indoor/Outdoor Lighting, Pool Heaters and SignsIncludes(1) On/Off Tripper
