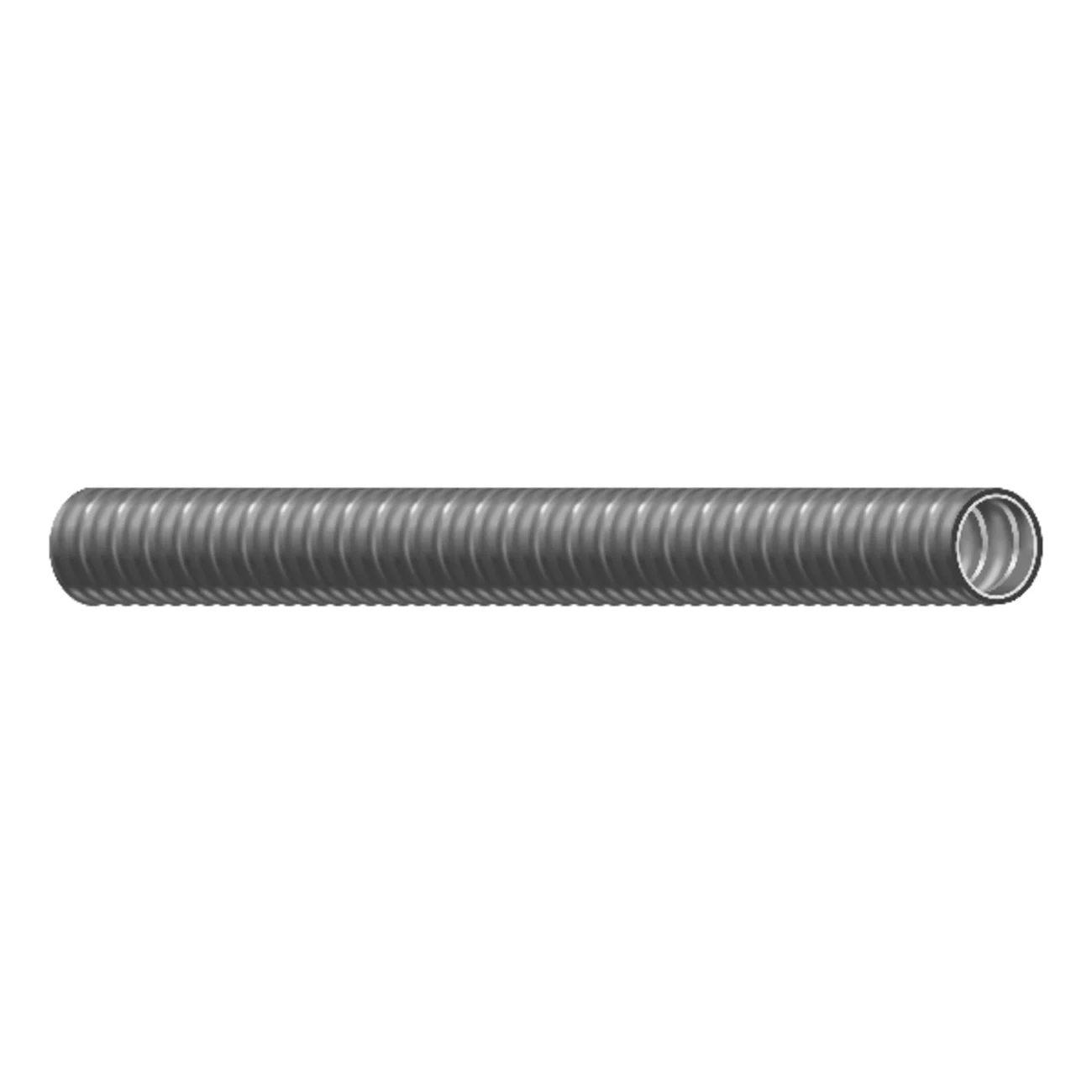

Titan 2 55082603 Conduit, 1/2 in, 100 ft L, Steel, Gray, Galvanized – Southwire

Description

Titan®2 Type UL LFMC is manufactured with a spiral wound strip of heavy-gauge, corrosion-resistant, hot-dipped galvanized steel. For 3/8 in through 1-1/4 in trade sizes, the core is constructed with a square locked steel strip with an integral copper bonding strip enclosed within the steel convolutions. For 1-1/2 in through 4 in trade sizes, the core is constructed with a fully interlocked steel strip. A rugged, flame-retardant, flexible PVC jacket is extruded over the steel core. The gray jacket resists oils, mild acids and exposure to sunlight.

• A protective thermoplastic outer jacket which seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases
• Smooth metal interior for easy wiring pulling
• UV-resistant jacket
• Rated for temperature range of -55 to 80 deg C, 60 deg C oil (-67 to 176 deg F, 140 deg F oil)
• Accepts standard metallic liquidtight fittings
• Rated for direct burial applications including concrete encasement

TypeFlexibleTrade Size1/2Inside Diameter0.62 to 0.64Outside Diameter0.82 to 0.84MaterialSteelColorGrayFinishGalvanizedLength100Operating Temperature-55 to 80
