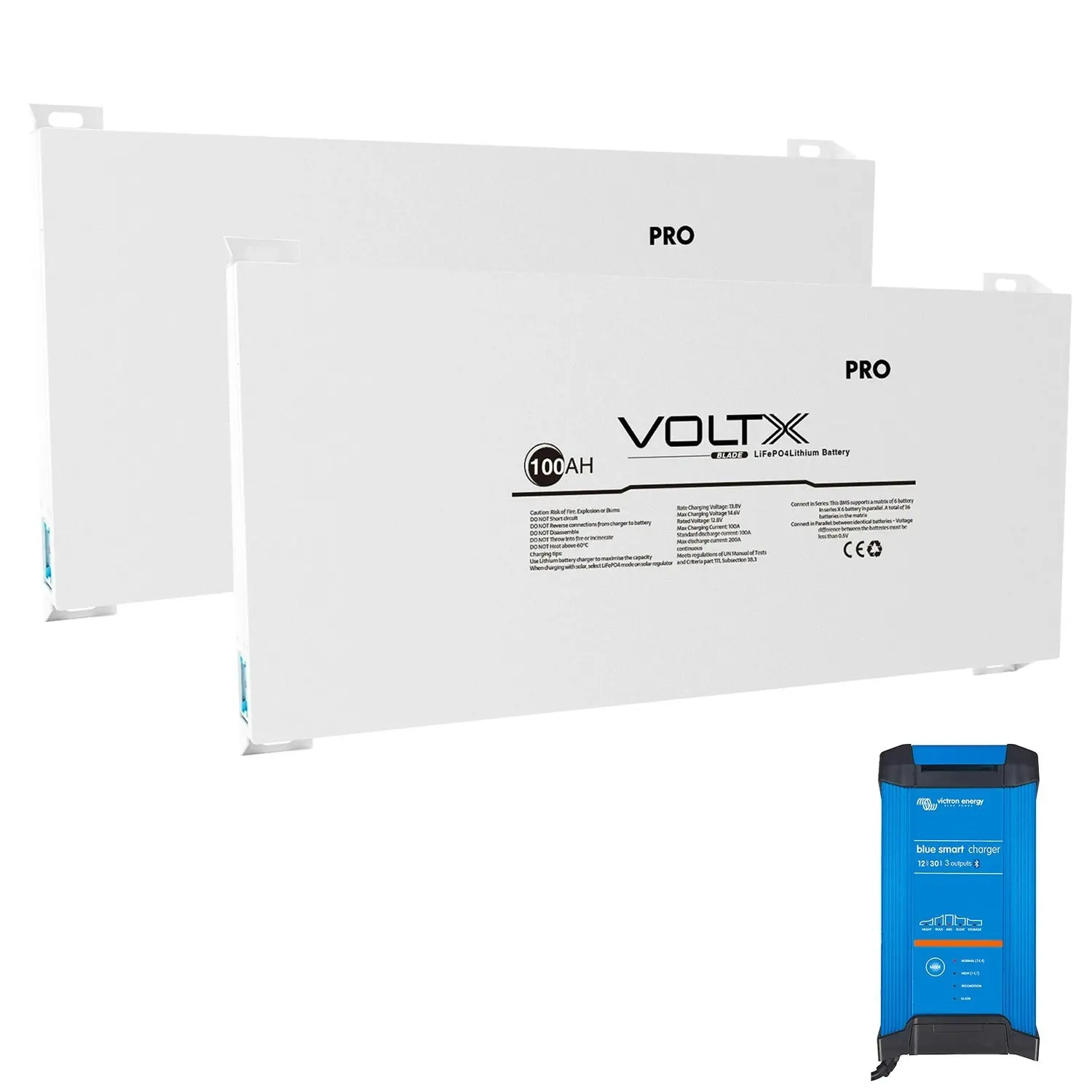

Victron Smart IP22 SLA/2x VoltX 12V 100Ah Blade Lifepo4 Battery – Electronics

Description

This bundle is a game-changer for efficient, high-capacity power storage. The Victron Smart Charger ensures a smooth and optimised charging process with its 6-stage adaptive algorithm, reducing power consumption while extending battery life. Paired with 2 x VoltX 12V 100Ah Blade LiFePO4 Batteries, this setup delivers 100% real capacity in a compact, space-saving design, perfect for off-grid adventures. Its IP65-rated durable casing protects against different elements, while its built-in Battery Management System (BMS) enhances safety by preventing overcharging and short circuits. Upgrade your power setup, get yours now!

FEATURES
High-Efficiency Charging
Advanced 6-Stage Charging
Built-in BMS
Parallel & Series Capable
Bluetooth Connectibility

SPECIFICATIONS
MODEL 1: Victron Blue Smart IP22 SLA/LiFePO4 Charger
Input voltage range:180 – 265 VAC
Charge current, normal mode:15 / 20 / 30 A
Charge current, NIGHT or LOW:7,5 / 10 / 15 A
Efficiency:93 %
No load power consumption:0.5 W
Frequency:45 – 65 Hz
Number of outputs:1
Charge Voltage Absorption:Normal: 14, 4V
High: 14, 7V
Li-ion: 14, 2V
Charge Voltage Float:Normal: 13, 8V
High: 13, 8V
Li-ion: 13, 5V
Charge Voltage Storage:Normal: 13, 2V
High: 13, 2V
Li-ion: 13,5 V
Charge algorithm:6-stage adaptive
Can be used as power supply:Yes
Protection:Battery reverse polarity (fuse)
Output short circuit
Over temperature
Operating temp. range:-40 to +60 °C (full rated output up to 40 °C)
Humidity (non-condensing):Max 98 %
Material & Colour:Aluminium (blue RAL 5012)
Battery connection:Screw terminals 16 mm⊃ / AWG6
230 VAC connection:Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
Protection category:IP22
Dimensions:235(H) x 108(W) x 65(D) mm
Weight:1.3 kg

MODEL 2: VoltX 12V 100Ah Lithium Iron Phosphate Battery
Nominal Capacity:100Ah
Usable Capacity:100Ah
Nominal Voltage:12.8V
Energy:1280Wh
Charge Voltage:14.6V
Discharge Cut-off Voltage:10V
Charge Method:CC/CV
Charger:14.6V50A
Standard Discharge Current:100A
Max. Continues Discharge Current:100A
Max. Discharge Current (5sec):300A
Standard Charge Current:50A
Max. Charge Current:100A
Working Temperature Range Charge:0°C to 45°C
Discharge:-20°C to 60°C
Storage Temperature: -10°C to 50°C
Dimension: 395(L) x 110(W) x 297(H)mm

PACKAGE CONTENTS
1 x Victron Smart IP22 SLA
2 x VoltX 12V 100Ah Blade LiFePO4 Battery
