Description

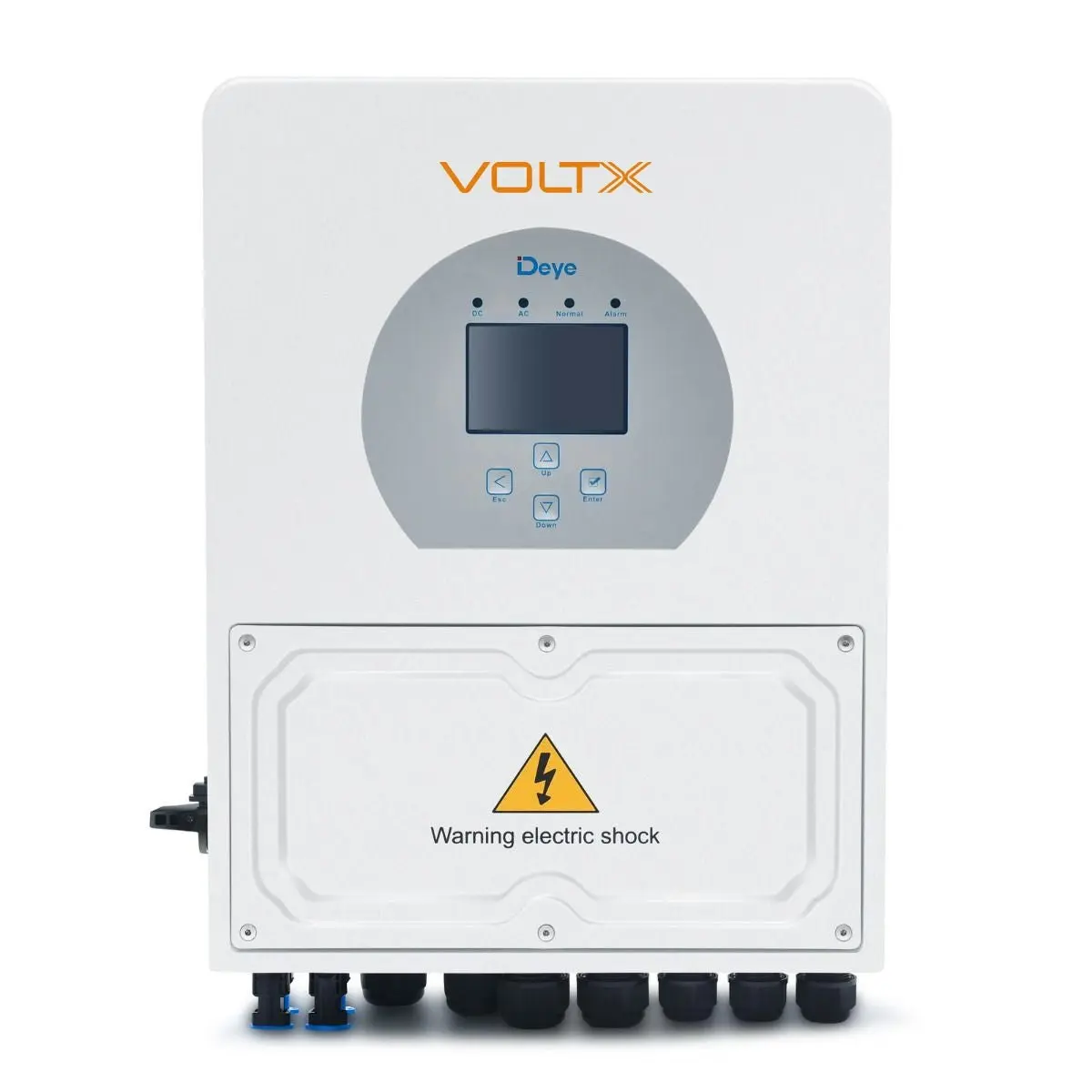

The VoltX Deye 5kW Hybrid Solar Inverter MPPT Charge Controller is a multi-function inverter that can act as an inverter, solar charger, and battery charger. With multiple advanced safety features, you can enjoy safe, stable, and uninterrupted power from such a compact form factor. Switching from grid-connected mode to off-grid mode has never been this quick before, but with this hybrid inverter, you can stay connected seamlessly. Get yours today!
FEATURES
Wall-mounted
Built-in MPPT Controller
Wide Voltage Range
Pure Sine Wave
IP65 Waterproof
Colourful Touch LCD
SPECIFICATIONS
Brand:Deye
Installation Style:Wall-mounted
Operating Temperature Range:-40~60℃,>45℃ derating
Cooling:Nature Cooling
Noise level:<30 dB
Communication with BMS：RS485; CAN
Protection Degree:IP65
Battery Type:Lead-acid or Lithium-ion
Battery Voltage Range:40~60V
Max. Charging Current:120A
Max. Discharging Current:120A
Charging Curve:3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery:Self-adaption to BMS
Max. DC Input Power:6500W
Rated PV Input Voltage:370V (100~500)
Start-up Voltage:125V
MPPT Voltage Range:125-425V
Full Load DC Voltage Range：240-425V
PV Input Current:13+13A
Max. PV ISC:17+17A
Number of MPPT / Strings per MPPT:2/1+1
Rated AC Output and UPS Power (VA):5000
Max. AC Output Power:5000W
AC Output Rated Current:21.7A
Max. AC Current:21.7A
Max. Continuous AC Passthrough:35A
Peak Power (off grid):2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type:Single Phase
DC injection current (mA):THD<3% (Linear load<1.5%)
Weight：15.1kg
Size:330(W) x 433(H) x238(D)mm
PACKAGE CONTENTS
1 x Solar Inverter
1 x User Manual
