Description

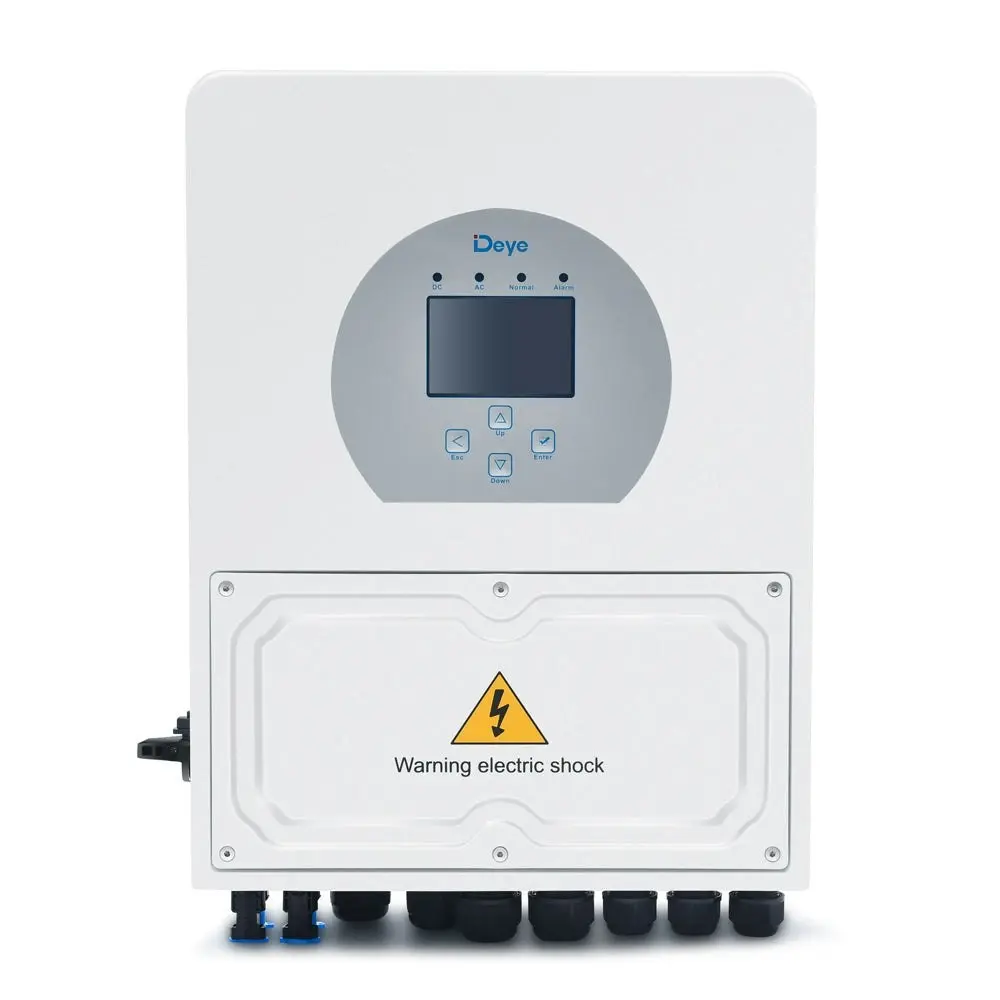

The VoltX Deye 6kW Hybrid Solar Inverter MPPT Charge Controller is an all-in-one device that can upgrade your on-grid or off-grid power setup. It combines the functions of an inverter, solar charger, and battery charger, giving you convenient and uninterruptible power for all your electronics. This hybird inverter is also parallel-capable with up to 16 connections and with IP65 rating, it can be safely used on a boat. Get yours today!
FEATURES
Wall-mounted
Buitt-in MPPT Controller
Wide Voltage Range
Pure Sine Wave
IP65 Waterproof
Colourful Touch LCD
SPECIFICATIONS
Brand:Deye
Installation Style:Wall-mounted
Operating Temperature Range:-40~60℃,>45℃ derating
Cooling:Nature Cooling
Noise level:<30 dB
Communication with BMS：RS485; CAN
Protection Degree:IP65
Battery Type:Lead-acid or Lithium-ion
Battery Voltage Range:40~60V
Max. Charging Current:135A
Max. Discharging Current:135A
Charging Curve:3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery:Self-adaption to BMS
Max. DC Input Power:7800W
Rated PV Input Voltage:370V (100~500)
Start-up Voltage:125V
MPPT Voltage Range:125-425V
Full Load DC Voltage Range：240-425V
PV Input Current:13+13A
Max. PV ISC:17+17A
Number of MPPT / Strings per MPPT:2/1+1
Rated AC Output and UPS Power (VA):6000
Max. AC Output Power:6000W
AC Output Rated Current:26.1A
Max. AC Current:26.1A
Max. Continuous AC Passthrough:40A
Peak Power (off grid):2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type:Single Phase
Weight：15.1kg
Size:330(W) x 433(H) x238(D)mm
PACKAGE CONTENTS
1 x Solar Inverter
1 x User Manual
