Description

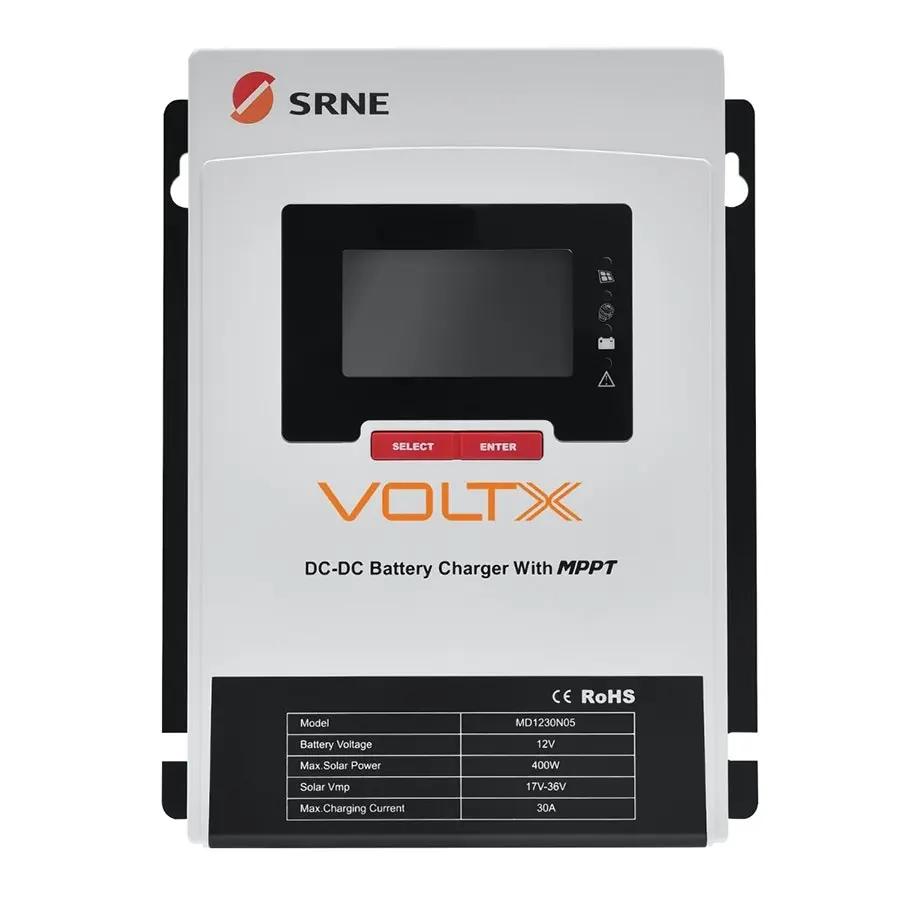

Every solar power setup needs quality accessories, like this VoltX 12V 30A MPPT DC to DC Lithium Battery Charger. This handy, multi-functional device allows for safe charging of your battery via the alternator and solar panels. Designedfor easy parameter tracking and with built-in protection against over-current, short circuit, and open circuit, it’s definitely a must-have in any solar panel/alternator + battery setup.
FEATURES
Dual input – alternator & solar
Easy to track with mobile phone app and PC monitoring software
Industry-leading PowerCatcher MPPT technology
4 charging phases for lead-acid batteries
3 vehicle generator charging modes
SPECIFICATIONS
Model: MD1230N05
Backup Battery System Voltage: 12V
Backup Battery Voltage Range: 9~16V DC
Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
Rated Charging Current: 30A
Maximum PV Input Voltage: 55V DC
Max. power point voltage range: 17~36V
Maximum PV Input Current: 27A
Solar Panel Charging Mode: Buck MPPT
PV input power is recommended: 400W
Generator (Starter Battery) System Voltage: 12/24V
Starter Battery Type: Lead-acid Battery
Max. Generator Input Voltage: 32V DC
Maximum Generator Input Current 35A
Generator charging mode: Buck, Boost, Buck-Boost
12V Backup Battery: 400W
Charging Voltage: 13.8V
No-load loss:<0.6W
Max. Charging Conversion Efficiency: 98%
Communication method: TTL
Waterproof level: IP32
PACKAGE CONTENTS
1x DC to DC Lithium Battery Charger
